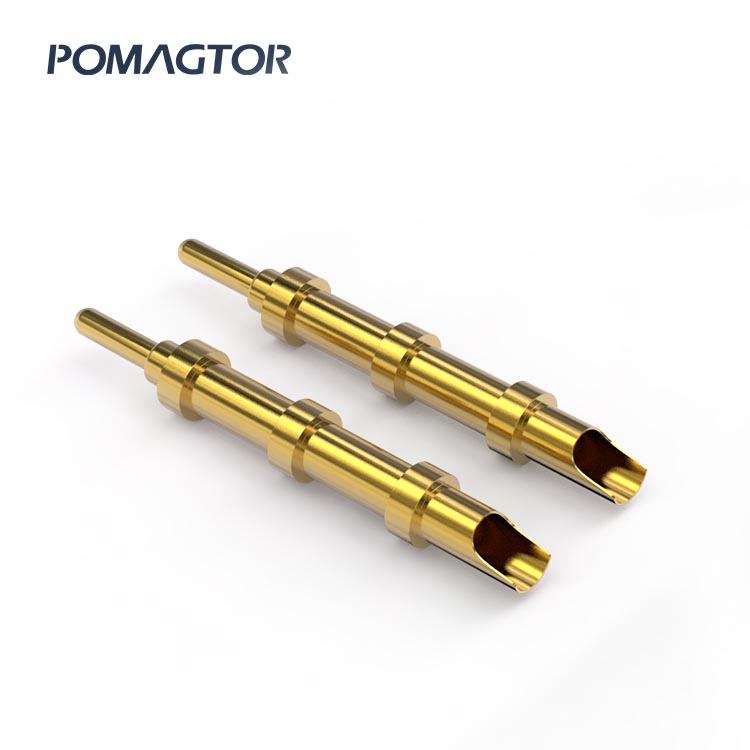

HOME > Pogo Pin > Welding Wire Type>Welding Wire Type Pogo Pin 2.0*15.5mm Stroke2.0mm(Per Contact): 110±25gf -30~85°C 1A 20V
HOME > Pogo Pin > Welding Wire Type>Welding Wire Type Pogo Pin 2.0*15.5mm Stroke2.0mm(Per Contact): 110±25gf -30~85°C 1A 20V
Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 20V
Rated current (each contact): 1A
Mechanical life: 20000 times
Operating temperature range: - 30 ~ 85 °C
PogoPin is a Spring type probe formed by Plunger, Tube and Spring (Spring) three basic components through high precision equipment rivet pressure, also known as Spring needle, Spring thimble, Spring probe, Spring Loaded, PogoPin connector. The bottom of the Pogo Pin's Plunger is usually a bevel structure, which ensures that the Pogo Pin keeps the Plunger in contact with the inner wall of the Tube as it works, The current is passed primarily through the gold-plated Plunger and Tube to ensure the Pogo Pin is stable and has low impedance.
| NOTES: | |
| 1.0 PLATING: | |
| 1)Contact plating: | Lead free copper Au40u over 120-180u"Ni |
| 2)Contact solder area plating: | Lead free copper Au3-5u"over 120-180u"Ni |
| 3)Spring: | SUS304 |
| 2.0 Rated voltage(Per Contact): | 20 Volts |
| 3.0 Rated Current(Per Contact): | 1A maximum |
| 4.0 Contact Resistance: | 30mΩ maximum |
| 5.0 Recommended Working Stroke&Force: | 1)Stroke 2.0mm(Per Contact):110士25gf |
| 6.0 Mechanical life: | 1)Mechanical life:20,000 Cycles Min |
| 7.0 Working Temperature Range: | -30~85°C |
Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
