Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 12V
Rated current (each contact): 1.2A
Mechanical life: 10000 times
Operating temperature range: - 30 ~ 85°

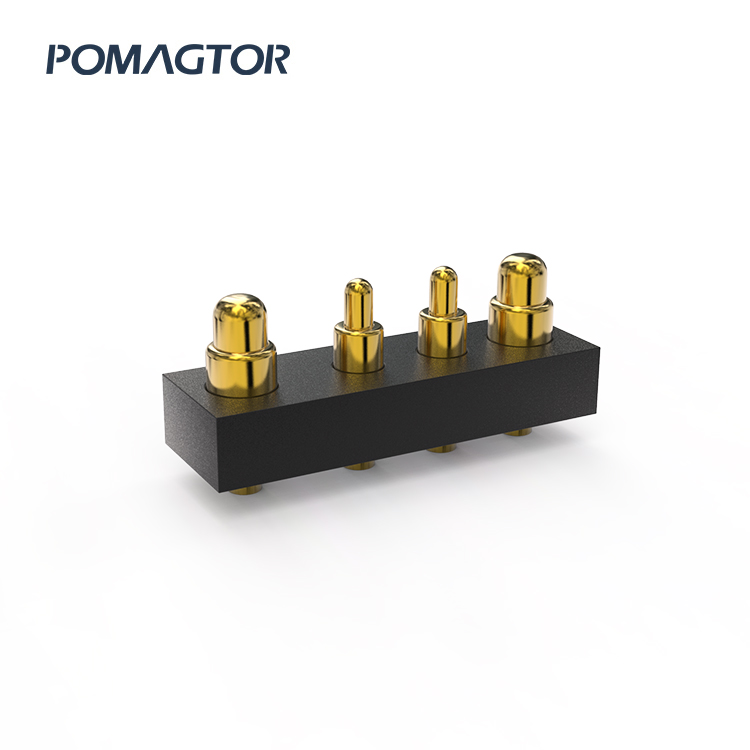

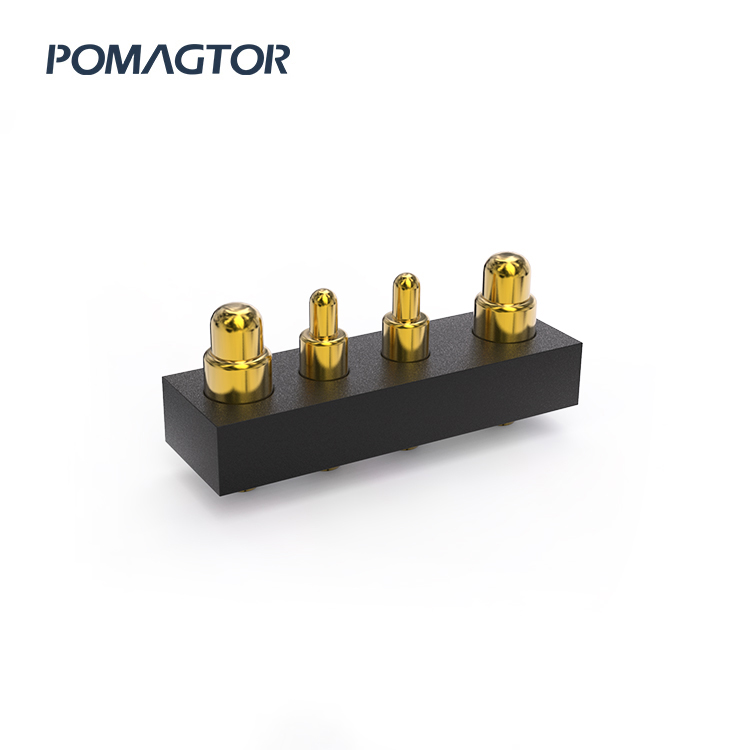

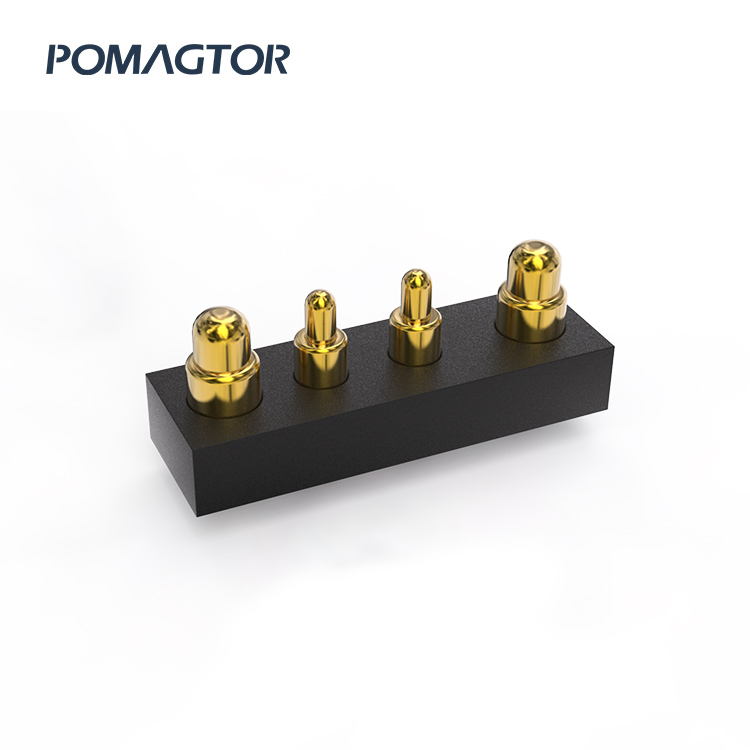

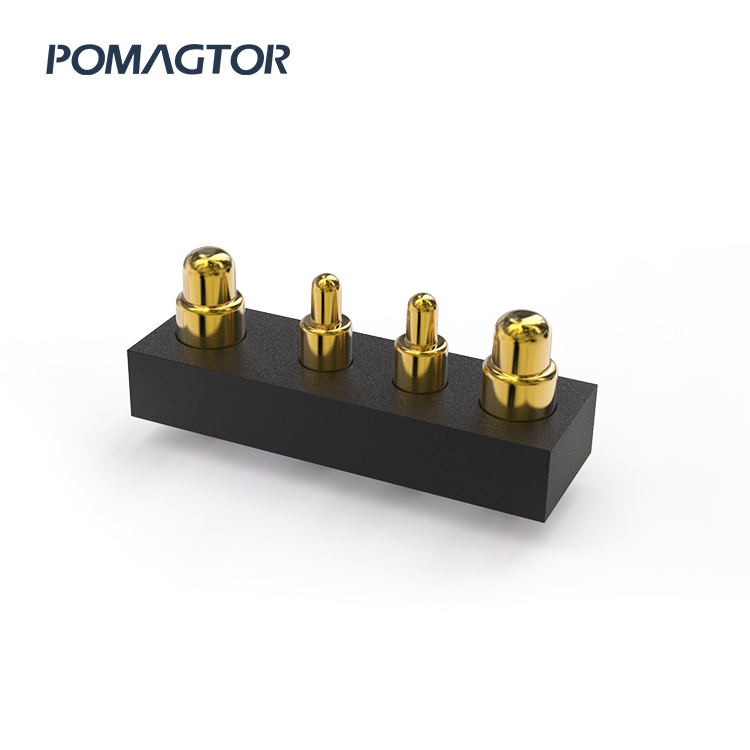

Pogo Pin connector is a spring-type probe formed by rivet of four basic components, namely Plunger, Tube, Spring and Housing, through high precision equipment. Also known as Spring pin, Spring thimble, Spring probe, Spring Loaded, PogoPin connector. The bottom of the Pogo Pin's Plunger is usually a bevel structure. The bevel structure ensures that the Pogo Pin keeps the Plunger in contact with the inner wall of the Tube as it works. The current is passed primarily through the gold-plated Plunger and Tube to ensure the Pogo Pin is stable and has low impedance.
| 1.0 PLATING | |
| 1)Contact plating:brass Au10u"over 50-80u"Ni | |
| 2)Contact solder area plating:brass Au10u"over 50-80u"Ni | |
| 3)Spring:SUS | |
| 4)Housing:PA46 Black | |
| 2.0 Rated Voltage(Per Contact): | 12Volts |
| 3.0 Rated Current(Per Contact): | 1.2A maximum |
| 4.0 Contact Resistance: | 30MΩ maximun before test and 60MΩ maximum after test at pogo pin working stroke |
| 5.0 Recommended working Stroke&Force: | Stroke 0.5mm(Per Contact) 150gf Max |
| 6.0 Mechanical life: | 30000 Cycles |
| 7.0 Working Temperature Range: | -30~85° |
Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
