Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 12V
Rated current (each contact): 1.2A
Mechanical life: 30000 times
Operating temperature range: - 30 ~ 85°
Categories: Pogo Pin Connector, SMT Pogo Connector, 2Pin Pogo Connector, 1.2A
Product Introduction

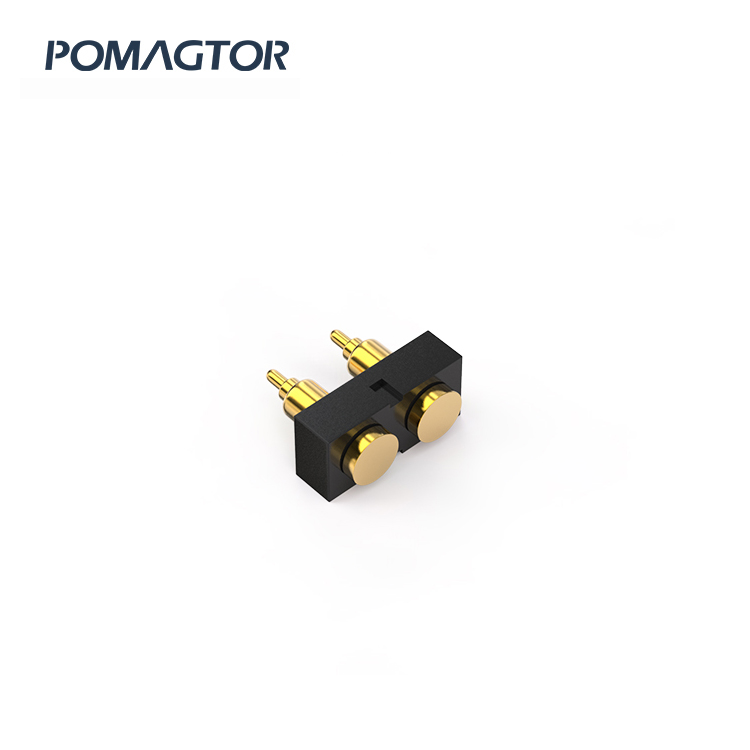

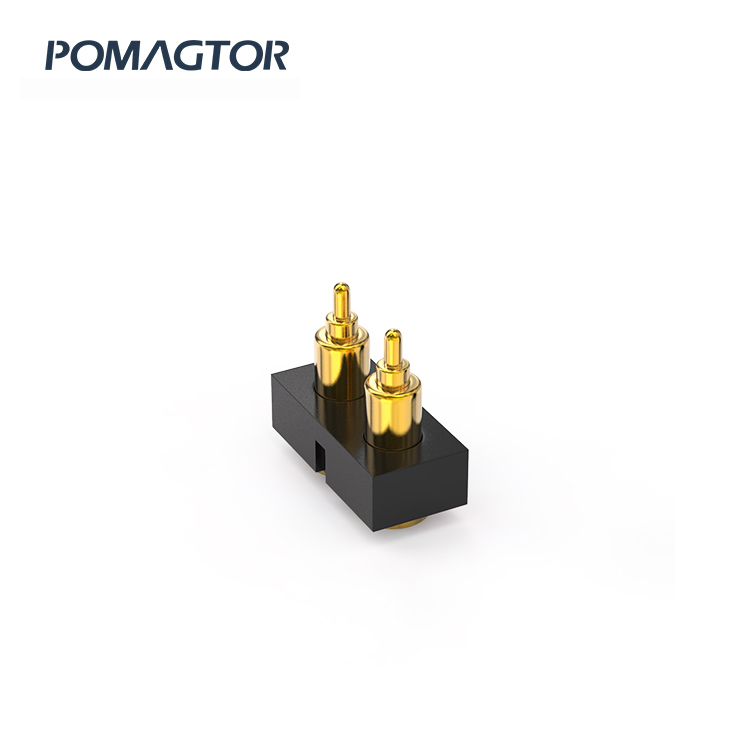

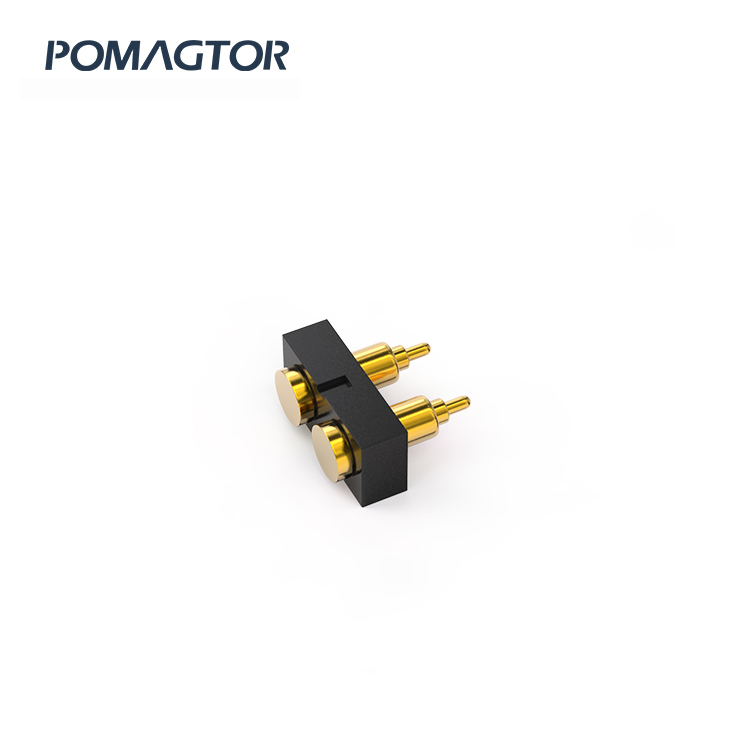

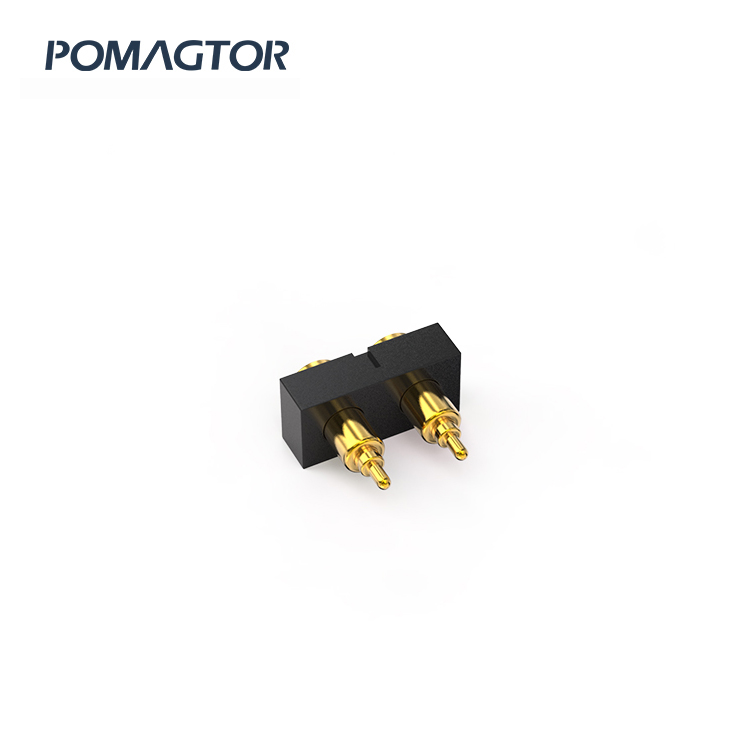

Pomagtor introduces the new 2Pin SMT Pogo connectors. Pogo Pin connector 2pin SMT (HY91.00475-001) is ideal for low-profile spring interconnections parallel to the board surface.
The combination of Pogo Pin and SMT pin header applies to recharging modules(Pogo Pin charger), test points, and board edge-to-edge interface.
Utilizing Pomagtor's state-of-the-art, high-quality precision-machining technology, these durable Pogo Pins are designed to ensure a 30,000-cycle life minimum. The pins are plated according to the customer.
Customized Service
We provide a highly reliable, precision-made interconnect solution and can assist with your custom design needs. Contact Pomagtor to order custom SMT Pogo connectors.
| 1.0 PLATING | |
| 1)Contact plating:brass Au3u"over 50-80u"Ni | |
| 2)Contact solder area plating:brass Au3u"over 50-80u"Ni | |
| 3)Spring:SUS 304 | |
| 4)Housing:PA46 Black | |
| 2.0 Rated Voltage(Per Contact): | 12Volts |
| 3.0 Rated Current(Per Contact): | 1.2A maximum |
| 4.0 Insulation Resistance: | 100MEGAOHMS |
| 5.0 Dielectric Withstanding Voltage: | 100V at 60Hz |
| 6.0 Contact Resistance: | 30MΩ maximun before test and 60MΩ maximum after test at pogo pin working stroke |
| 7.0 Recommended working Stroke&Force: | Stroke 0.8mm(Per Contact) 150gf Max |
| 8.0 Mechanical life: | 30000 Cycles |
| 9.0 Working Temperature Range: | -30~85° |
Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
